Medical Healthcare

PEEK -LISCIEX is ZYPEEK's product series for Medical & healthcare devices
including implantable grade, contactable grade.

Product Advantages Application Prospects Application Components Product Introduction Biocompatibility Testing Quality Assurance Recommended Products

ZYPEEK Advantages

ZYPEEK’s bio-compatibility, mechanical strength, radiolucency, and comfort make it a key material in medicine and dentistry—used in orthopedics, craniomaxillofacial surgery, and dental restorations—with vast potential in 3D printing and personalized healthcare.

Bio-compatibility

The implant is not rejected

Elasticity Modulus

Close to human bones, reducing stress shielding

Imaging compatibility

Safe and clear for MRI examination after implantation, and postoperative examination

Customization

It is easy to process, can be designed and formed in one go, and achieve a high degree of fit

Safety &comfort

low thermal conductivity and is not easily affected by cold or hot environments

Materials for Medical and Healthcare

The implant field is used for spinal fusion devices, joint pads, cranio-maxillofacial bone plates, and dental abutments. It is used in non-implantable fields for surgical instruments, catheters, 3D printed guides, and ultrasonic probe housings.

With the maturation of 3D printing and composite reinforcement technologies, PEEK will accelerate its expansion into personalized, minimally invasive and green medical care, and become the next-generation high-performance core material for medical treatment.

1980s

PEEK has begun to come into the view of orthopedic doctors.

1998

PEEK has begun to be applied in plastic surgery and trauma surgery.

2022

ZYPEEK launched PEEK-LISCIEX series

Implantable Marterials

Stability research test reports of PEEK-LISCIEX products can be provided to offer a scientific basis for the shelf life of the products. We can provide analysis reports on the effects of different sterilization methods (moist heat sterilization, cycloethane sterilization, gamma-ray sterilization) on PEEK-LISCIEX, explaining the sterilization stability of the product.

More Applications

Interference screw

Threaded anchor nail

Connecting sheet

3D printing Plates

Cranial Plate

Superior orbital margin & inferior orbital margin

Nasal base filling

Angulus mandibulae

Sternum fixing strap

Sternum prosthesis

Vertebral lamina fixing system

Intervertebral fusion cages

Hip joint

Knee joint

Bone setting plate

Product Introduction

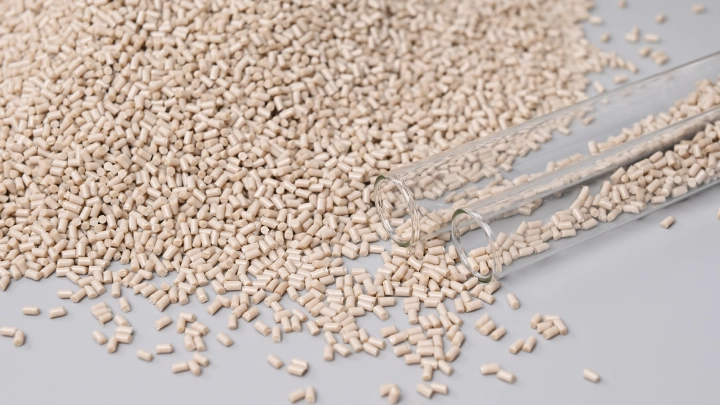

Unfilled Resin Rods Sheets

ZR3G、ZR7G

Processing method: Injection molding or extrusion

or 3D printing, extrusion and other processing methods

ZR7

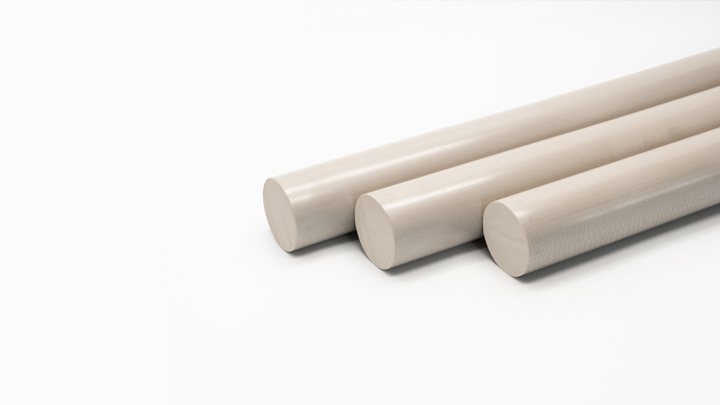

The standard length of the Rod (R) is 1000mm, and the diameter is 16/20/25/30mm(other sizes can be provided according to customer requirements).

It can be applied to machined medical device products such as intervertebral fusion devices.

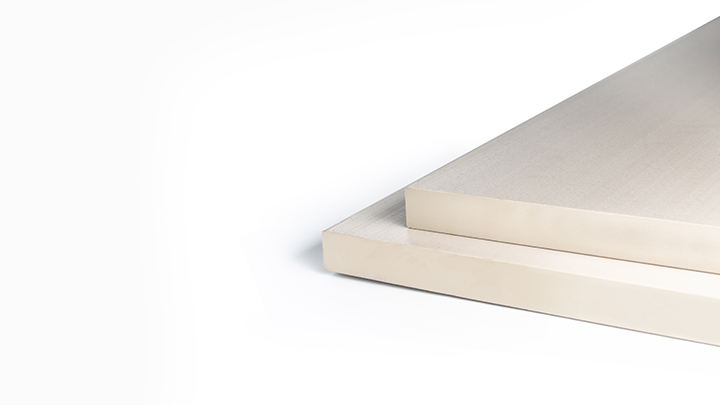

ZR7

The standard size of the sheet (PL) is 1000*620mm, and the thickness is 30/40mm(other sizes can be provided according to customer requirements).

It can be applied to machined medical device products such as skull slices.

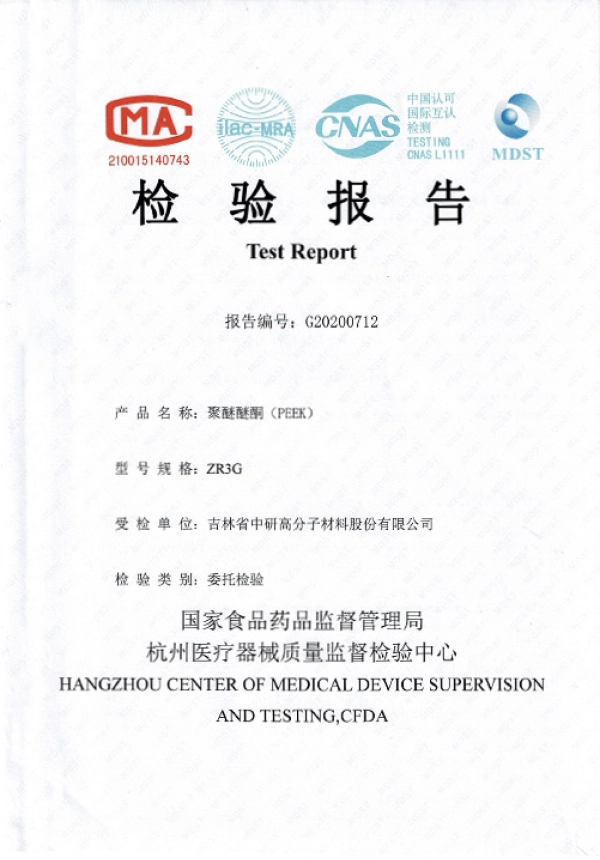

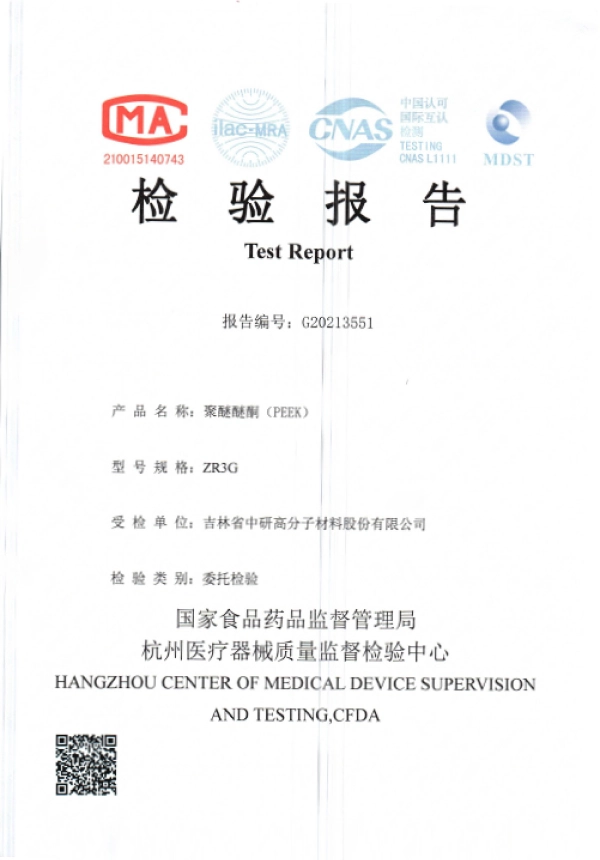

Biocompatibility Testing

TEST STD

GB/T 16886.3

GB/T 16886.5

GB/T 16886.6

GB/T 16886.10

GB/T 16886.11

GB/T 16886.18

TEST

Genotoxicity

(Ames Test/Mouse Lymphoma test)

In vitro cytotoxicity

26 weeks after bone implantation

Skin sensitization

Intradermal reaction

Acute systemic toxicity

Subacute systemic toxicity

Subchronic systemic toxicity

Pyrogen test

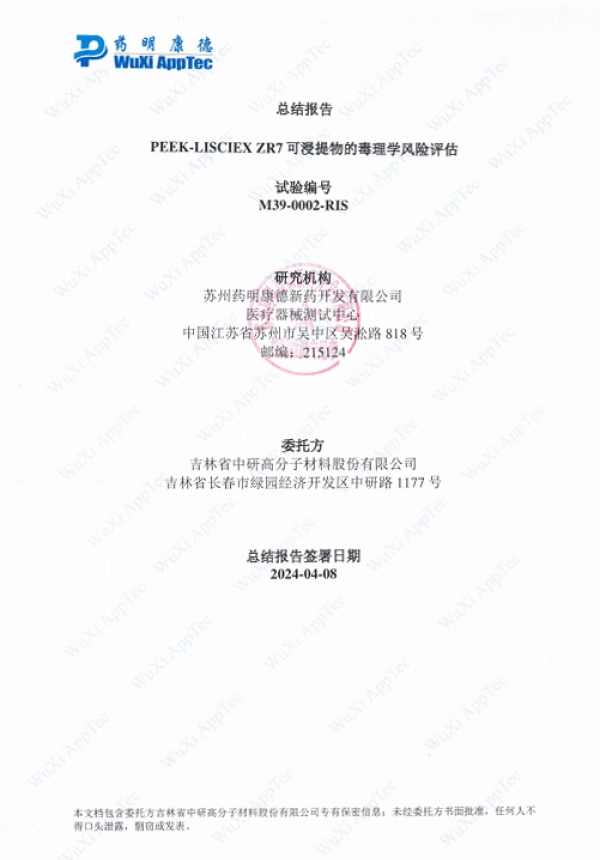

Chemical characterization and toxicological assessment

PEEK-LISCIX

中研股份

Quality Assurance

ZYPEEK has built a 1,140 m² GMP-compliant facility featuring a Class 10,000 (ISO 7) cleanroom. The facility is equipped with dedicated zones for granule production, stock shape (profile) manufacturing, and a microbiology laboratory. Leveraging these advanced hardware capabilities, the company has established an ISO 13485-certified quality management system, enabling industrial-scale production of medical implant-grade PEEK.
